Hello everyone, I have a database system with various fields for an online store. The issue is that we are trying to implement invoicing via barcode scanners.
Right now I have a bluetooth barcode scanner with an iPad set up with the direct view knack system.
The fields are (Quantity) (Item) then a Submit Button.
In a perfect world I wish I didn’t have Quantity and have to manually submit every time I scan 1 barcode.
I know some scanners offer an enter suffix which at most populates the (Item) Field. Does anyone have workarounds or experience in scanning system similiar to a self checkout at a store?
Romel, do you have a Knack form setup for this? I’m not familiar with what the direct view knack system is. If it is a form, do you have two input fields; Quantity, Item and then a Submit button? Or, are you doing this another way?
Yes, Craig is right. The KTL handles this very well and can even do more. You can have a combination of pre-defined field data along with user input, and even auto-submit after a specific delay.
In regard to the other replies, unfortunately I don’t use QR Codes, I use regular barcodes and the scanner scans and inputs the SKU that matches in the item field by searching the product list I have.
What you want to do is pretty simple. I do this a lot with my current project.
It’s possible to have a barcode (typically Code128 automatic) that is generated by the KTL with a format that contains all you need (qty, SKU, price, etc).
Then, when this printed (or displayed) barcode is scanned while being in a Knack form, the KTL will split all values and auto-populate them in their respective fields. You can also set the system to wait a specific amount of time and auto-submit if you want.
Thank you so much. I do have KTL on my app. Tbh the one I need most now is that with Stephen’s submit function, I would like for the same view to reload with the cursor back on the same field.
From what I see in the other thread with Stephen, you have a dropdown selector that needs to be searched. This becomes a two-step process where you must wait for the search outcome before submitting.
And what happens if the search fails? Should not submit for sure and pop up a timed error message.
This is why the KTL has been created: to address all possible use cases without any specific code.
I will see how I can do this with a new keyword: _bcr (Barcode Reader)
You’ll be able to specify the barcode format, and which field each portion should populate (called the mapping).

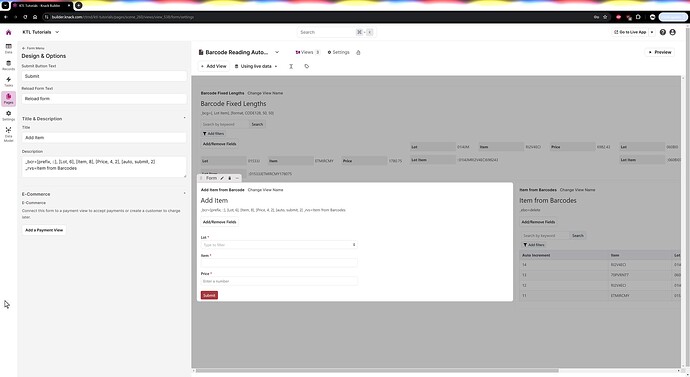

Just scan one of the barcodes you see at the top, and the form will auto-populate, search the Lot number in the dropdown and if found, will submit the form after 2 seconds.
You can keep going on indefinitely, only requiring a pause due to the submit delay + 2 seconds from the keyword.
I’ve chosen a prefix with two colons :: followed by 3 fields.
